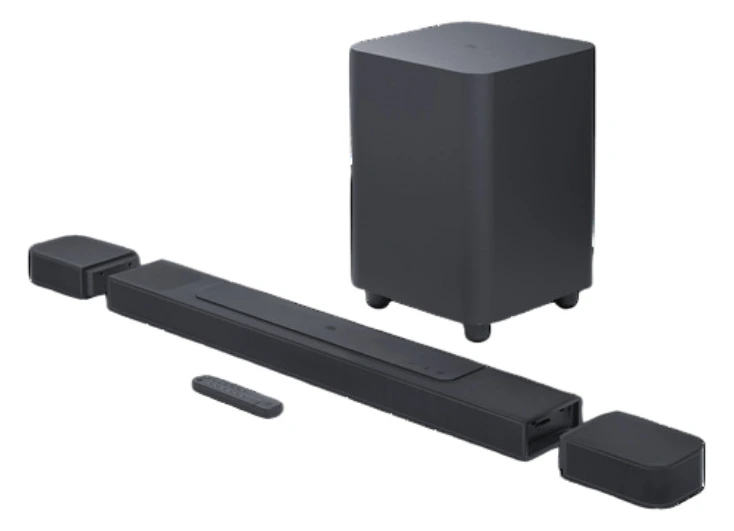

JBL BAR1000 BLK

Description Experience movies, music and games with sound that puts you right in the middle of the action, thanks to 880W of total output power and thunderous bass from the 10" subwoofer. The JBL Bar 1000 has MultiBeam™ and four up-firing drivers—two in the bar and two in the detachable battery-powered surround speakers—to envelop you in a sphere of Dolby Atmos® and DTS:X 3D surround sound with a wide, spacious soundstage with no need to draw extra cables. You'll never miss a word with our PureVoice technology, which makes sure the dialogue is clear even when other sounds are at their loudest. When you're ready for some music, stream your favorite playlist from AirPlay, Alexa MRM, and Chromecast built-in™ and it'll feel like the band is right there. Have a great night out without leaving your living room. General Specifications Model: BAR 1000 Sound system: 7.1.4 channel Power supply: 100 - 240V AC, ~ 50/60Hz Networked standby power: < 2.0W Operating temperature: 0°C - 45°C Audio Specifications Total speaker power output (Max @THD 1%): 880W Soundbar output power (Max @THD 1%): 440W Surround speaker output power (Max @THD 1%): 2x 70W Subwoofer output power (Max. @THD 1%): 300 W Soundbar transducer: 5x (46x90)mm racetrack drivers, 3x 0.75" (20mm) tweeters, 2x 2.75" (70mm) up-firing full-range drivers Surround speaker transducer: 0.75" (20mm) tweeters, 2.75" (70mm) up-firing full-range drivers Subwoofer transducer: 10” (260mm) Frequency response: 33Hz - 20kHz (-6dB) Audio inputs: 1 Optical, Bluetooth, USB (USB is for Service only.) Dimensions Total soundbar dimensions (W x H x D): 1194 x 56 x 125mm Main soundbar dimensions (W x H x D): 884 x 56 x 125 mm Detachable surround speaker dimensions (each) (W x H x D): 155 x 56 x 125 mm Subwoofer dimensions (W x H x D): 305 x 440.4 x 305 mm Soundbar weight: 3.7 kg Detachable surround speaker weight (each): 1.4kg Subwoofer weight: 10 kg Packaging dimensions (W x H x D): 1000 x 375 x 475 mm Packaging Weight: 19.4 kg Control and Connection Specifications USB port: Type A USB rating: 5V DC, 0.5A Supporting file format: MP3 MP3 codec: MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3 MP3 sampling rate: 16 - 48 kHz MP3 bitrate: 80 - 320 kpbs Bluetooth version: 5.0 Bluetooth profile: A2DP 1.2, AVRCP 1.5 Bluetooth transmitter frequency range: 2400MHz – 2483.5MHz Bluetooth transmitter power: <15dBm (EIRP) Wi-Fi network: IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz) 2.4G Wi-Fi transmitter frequency range: 2412 - 2472MHz (2.4GHz ISM Band, USA 11 Channels, Europe and others 13 channels) 2.4G Wi-Fi transmitter power: < 20dBm (EIRP) 5G Wi-Fi transmitter frequency range: 5.15 - 5.35GHz, 5.470-5.725GHz, 5.725 - 5.825GHz 5G Wi-Fi transmitter power: 5.15-5.25GHz <23dBm, 5.25-5.35GHz & 5.47-5.725GHz <20dBm, 5.725-5.825GHz <14dBm (EIRP) 2.4G wireless frequency range: 2406 - 2474MHz 2.4G wireless power: ＜10dBm (EIRP） Battery Lithium battery: 3.635V, 3283mAh Video Specifications HDMI video input: 3 HDMI video output (with Enhanced Audio Return Channel, eARC): 1 HDMI HDCP version: 2.3 HDR pass through: HDR10, Dolby Vision What's in The Box? 1x Main soundbar 2x Detachable wireless surround speakers 1x Wireless subwoofer Remote control with 2 x batteries Power cords 1 x HDMI cable 2 x L-shape wall-mount bracket (main bar) + 2 x U-shape wall-mount bracket (for surround speakers) kit with screws 4 x Side caps Quick start guide Wall mount template
