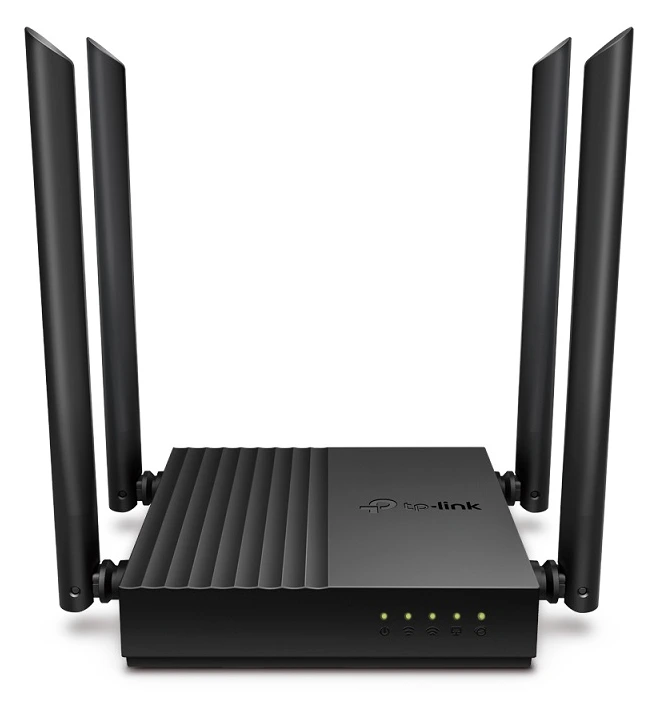

TP-Link Wireless AC Dual-Band Gigabit Router 1200Mbps Archer A64

• 802.11ac Wave2 WiFi – 867 Mbps on the 5 GHz band and 400 Mbps on the 2.4 GHz band • Boosted WiFi Coverage – 4 antennas provide stable wireless connections and optimal coverage. • MU-MIMO – Easy network management at your fingertips with TP-Link TetherMU-MIMO achieves 2X efficiency by communicating with up to 2 devices at once • Beamforming – Beamforming technology delivers a highly efficient wireless connection. • AP Mode – Supports Access Point mode to create a new WiFi access point. • Intelligent Connection – Smart Connect directs clients to the less congested band and Airtime Fairness optimizes the time usage. • Easy Setup – Easy network management at your fingertips with TP-Link Tether. • EasyMesh-Compatible - Flexibly creates a Mesh network by connecting to an EasyMesh-compatible router for seamless whole-home coverage Specifications WIRELESS Standards and Protocols: Wi-Fi 5 • IEEE 802.11ac/n/a 5 GHz • IEEE 802.11n/b/g 2.4 GHz WiFi Speeds: AC1200 • 5 GHz: 867 Mbps (802.11ac) • 2.4 GHz: 400 Mbps (802.11n) WiFi Range: 3 Bedroom Houses • 4× Fixed High-Performance Antennas • Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming • Concentrates wireless signal strength towards clients to expand WiFi range WiFi Capacity: Medium • Dual-Band • Allocate devices to different bands for optimal performance MU-MIMO: Simultaneously communicates with multiple MU-MIMO clients Airtime Fairness: Improves network efficiency by limiting excessive occupation Working Modes: Router Mode; Access Point Mode SECURITY Network Security: SPI Firewall; Access Control; IP and MAC Binding Guest Network: • 1× 2.4 GHz Guest Network • 1× 5 GHz Guest Network WiFi Encryption: WPA; WPA2; WPA3; WPA/WPA2-Enterprise (802.1x) HARDWARE Ethernet Ports: • 1× Gigabit WAN Port • 4× Gigabit LAN Ports Buttons: WPS/Reset Button Power: 12V = 1A SOFTWARE Protocols: IPv4; IPv6 EasyMesh Parental Controls: URL Filtering; Time Controls WAN Types: Dynamic IP; Static IP; PPPoE(Dual Access); PPTP(Dual Access); L2TP(Dual Access) Quality of Service: QoS by Device Cloud Service: OTA Firmware Upgrade; TP-Link ID; DDNS NAT Forwarding: Port Forwarding; Port Triggering; UPnP; DMZ IPTV: IGMP Proxy; IGMP Snooping; Bridge; Tag VLAN DHCP: Server; DHCP Client List; Address Reservation DDNS: TP-Link; NO-IP; DynDNS Management Features: Tether App; Webpage OTHER Network Services Enabled by Default: Web Server Manage and configure device through web (HTTP/HTTPS) • Port: 80/443 Protocol: TCP DNS DNS • Port: 53 Protocol: TCP & UDP DHCP Server IP address assignment (DHCP) • Port: 67 Protocol: UDP App management Manage and configure device through app • Port: 20002 Protocol: UDP Alexa service Detect Alexa-enabled devices in the LAN • Port: 5353 Protocol: UDP System Requirements: Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) Certifications: CE, RoHS TEST DATA WiFi Reception Sensitivity: 5 GHz: • 11a 6Mbps:-95dBm • 11a 54Mbps:-77dBm • 11ac VHT20 MCS8:-71dBm • 11ac VHT40 MCS9:-67dBm • 11ac VHT80 MCS9:-63dBm 2.4 GHz: • 11g 6Mbps: -96dBm • 11g 54Mbps: -78dBm • 11n HT20 MCS7:-77dBm • 11n HT40 MCS7:-74dBm • 11ac VHT20 MCS8:-73dBm • 11ac VHT40 MCS9:-68dBm PHYSICAL Dimensions (W×D×H): 4.7 × 4.7 × 1.1 in (120 × 120 × 27.9 mm) Package Content: • Wireless Router Archer A64 • Power Adapter • RJ45 Ethernet Cable • Quick Installation Guide https://www.tp-link.com/en/home-networking/wifi-router/archer-a64/ https://static.tp-link.com/Archer-C64_1.0_04_large_20210816062310q.jpg https://static.tp-link.com/upload/image-line/Archer_C64_1.0_large_20210816062342g.jpg
